cone

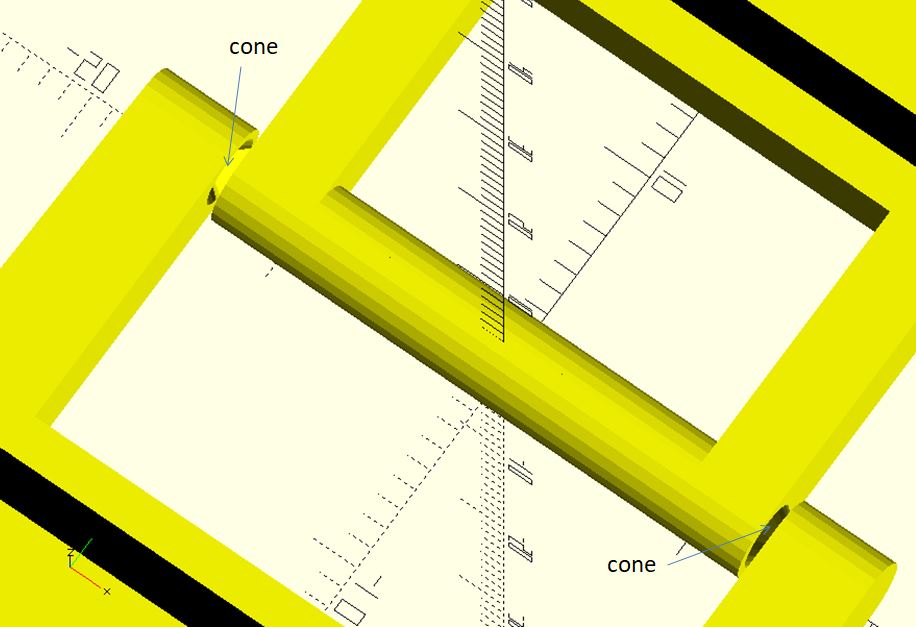

Create a cone for rotatable models.

Since: 2.1

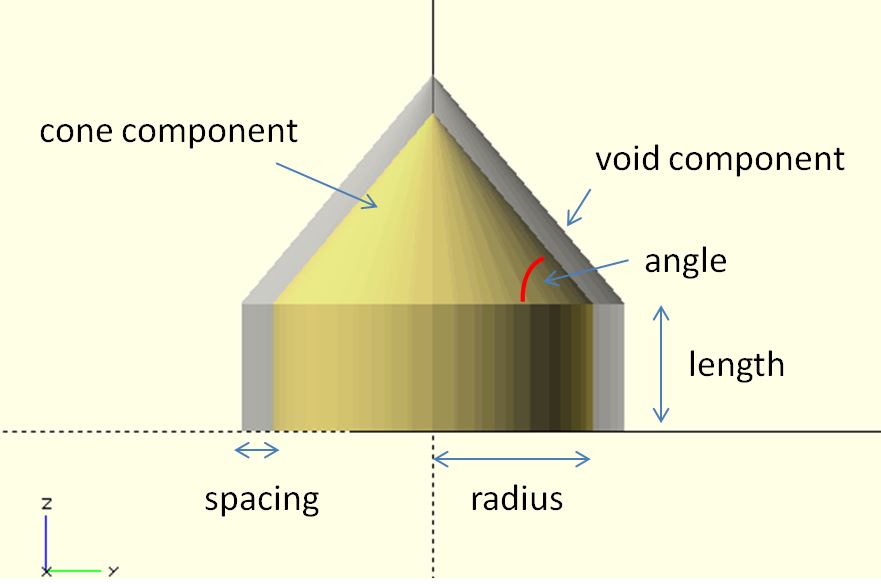

Parameters

• radius : The radius of the cone.
• length : The length of the cone.
• spacing : The spacing between the cone and void component. Default to 0.5.
• angle : The angle between the bottom and hypotenuse. Default to 50 degree.
• void : The void component for differencing. It's used to create a cavity for a cone. Default to false.
• ends : Default to false. To create a double-ended cone, set it to true.

Examples

use <part/cone.scad>;

radius = 2.5;
length = 2;
spacing = 0.5;

$fn = 48;

cone(
    radius = radius,
    spacing = spacing,
    length = 2
);

%cone(
    radius = radius,
    spacing = spacing,
    length = 2,
    void = true
);

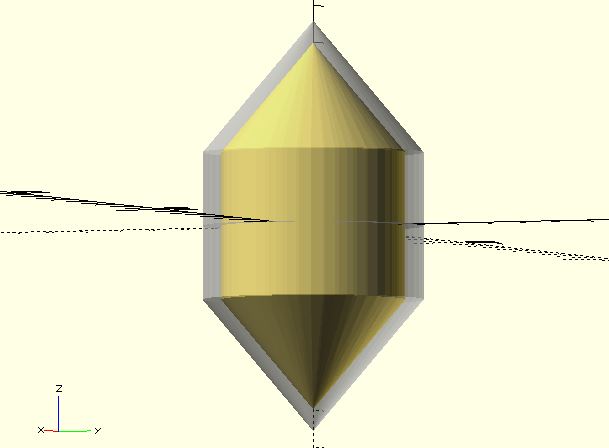

use <part/cone.scad>;

radius = 2.5;
length = 2;
spacing = 0.5;

$fn = 48;

cone(
    radius = radius,
    spacing = spacing,
    length = 2,
    ends = true
);

%cone(
    radius = radius,
    spacing = spacing,
    length = 2,
    void = true,
    ends = true
);
